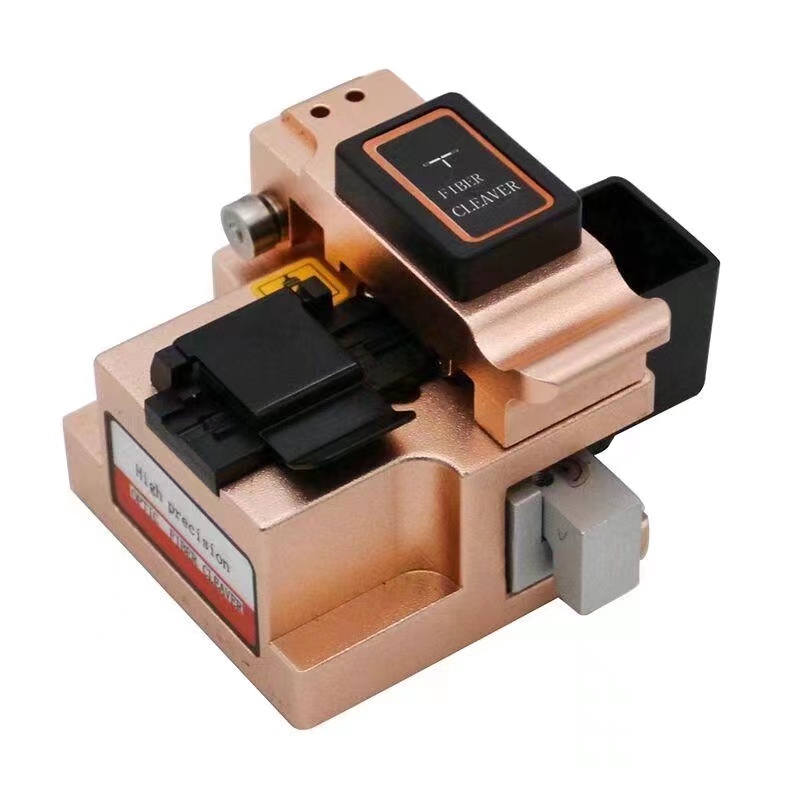

Automatic Fiber Cleaver FC-08 with Auto-Rolling Blade

    • Automatic Fiber Cleaver FC-08 with Auto-Rolling Blade

    Product Description

    Key Features:

    ·       Automatic rotate of blade, one step to finish; Easy-step operation, High-efficiency;

    ·       Auto rotate Blade lifetime up to 2000 times each point24 cutting pointblade life time up to 48000times;

    ·       Precise cleaved surfaces; Smooth cleaving angle around 0.5 degree

    ·       Smart anti-fiber breakage design preventing the fiber from damage by the return of blade carriage;

    ·       With fiber waste bin to collect the waste fiber shards.

    ·       Main Body is aluminum material; Blade magnesium alloy materials.

    Specification:

    Model

    FC-08 AUTO

    Blade Rotate

    Automatic

    Cleave Angle

    ≤0.5°

    Cleave Length

    0.25mm fiber:9~16mm

    0.9mm fiber:10~16mm

    Fiber Diameter

    125μm

    Coating   Diameter

    0.25&0.9mm

    Size

    63W×56D×56Hmm

    Weight

    300g

    Blade Life   Time

    Around 48000 fibers

    Blade Point

    24 point

    Scrap   Collector Bin

    Yes

    Operating   Temp.

    -40-80
