    Product Description


    Handheld Fiber Optical Power Meter Telecommunication and CATV broadcasting

    Overview

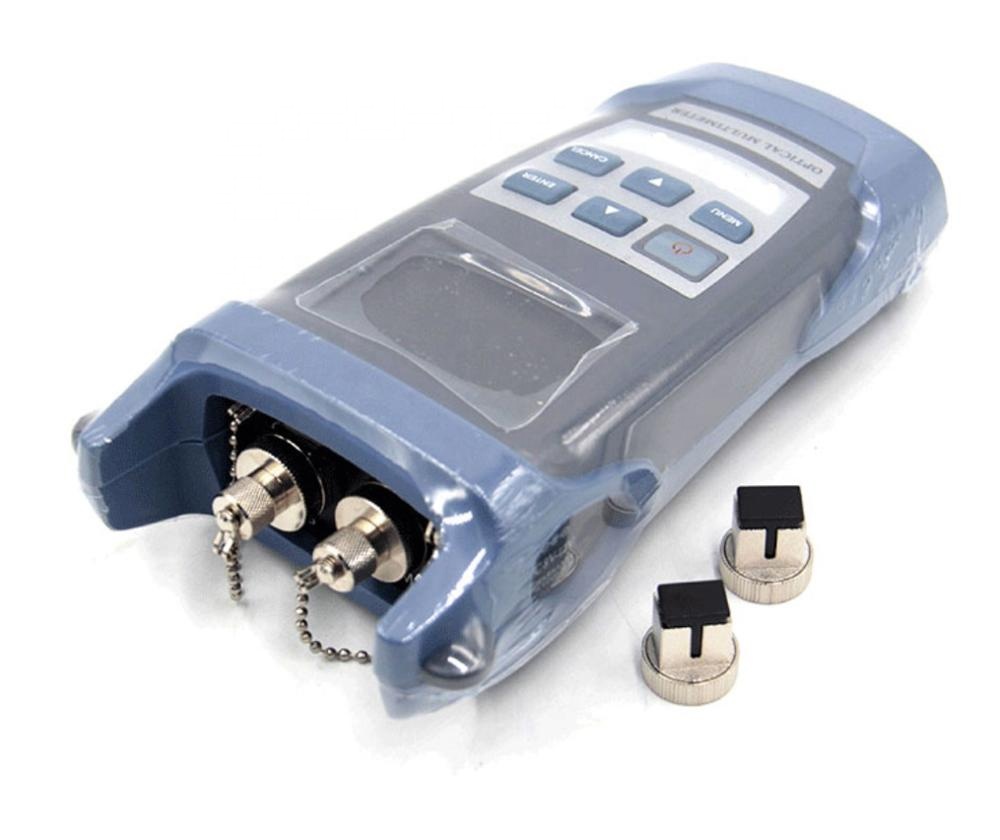

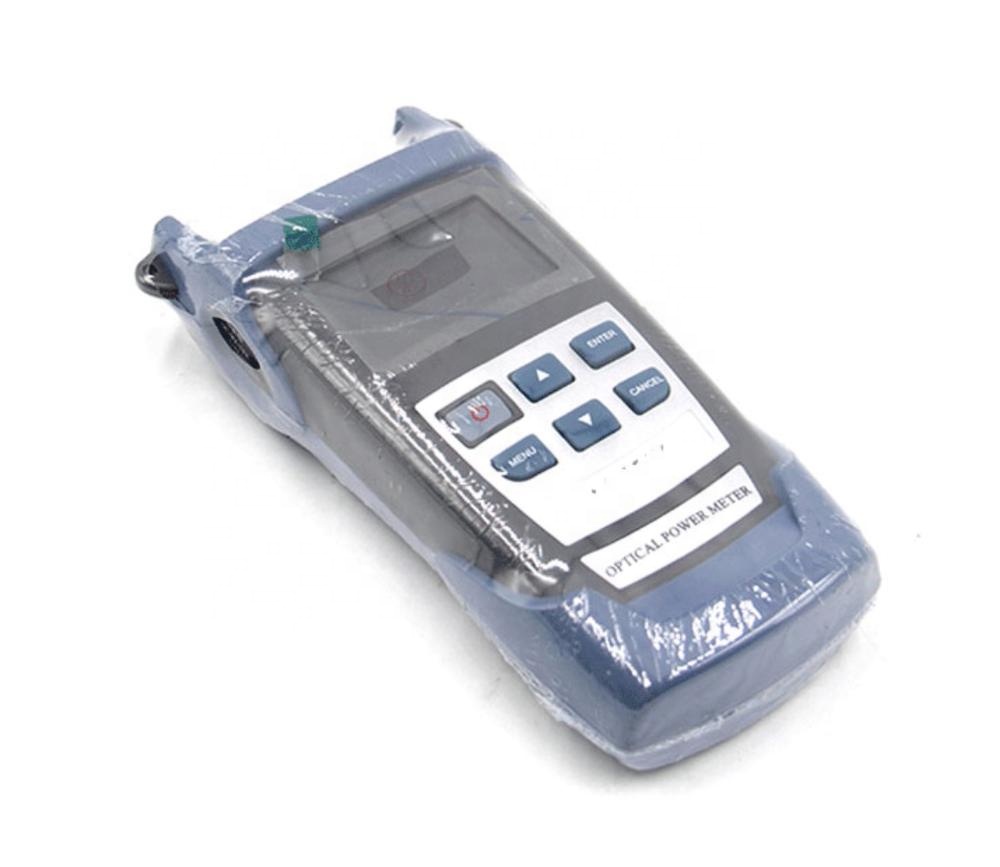

    HF3200 Handheld Fiber optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.


    Features:

    User-self calibration function.
    Comfortable LCD display and optional backlight LCD display supports night operation.
    Power measurements in dBm or mw and insertion loss in dB
    Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline  batteries
    Optional 10 minutes Auto-off function.


    Specification:

    Model
    HF3200 A
    HF3200B
    Wavelength(nm)
    (800~1700 )
    Detector
    InGaAs
    Measurement Range (dBm)
    -70~+10
    -50~+26
    Uncertainty
    +0.2(5%)
    Calibrated Wavelength(nm)
    850,980,1300,1310,1490,1550, 1625
    Resolution(dB)
    Linear 0.1% or Non-linear 0.01dBm
    Optical Connector
    FC/ Universal 2.5mm adapter
    (FC,SC,ST interchangeable connector can be optional)
    Power Supply
    Alkaline Battery(3 AA 1.5V batteries)
    Battery Operating Time
    240 h with 1.5V Battery(3)
    Operating Temperature(oC)
    -10 ~ +60
    Storage Temperature(oC)
    -25 ~ +70
    Relative Humidity
    0 to 95% (non-condensing)
    Dimension(mm)
    172x82x33
    Weight
    300 g
